Replacing the battery¶
See also
If your battery needs to be replaced:
| Step | Action |
|---|---|
| Make sure you have a Phillips 0 screwdriver. | |
| Read the Safety guidelines. | |
Disconnect the power cable from the plug located on NAO‘s back.
|
|

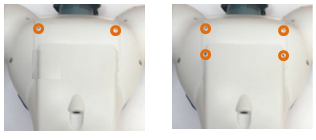

Remove the screws of the battery cover with the Phillips 0 screwdriver (2 screws on NAO V4, 4 screws on NAO V3.x).
|
|
Remove the used battery and replace it with a new one.
|
|
| Once it fits snuggly in its slot, place the cover back into position and tighten all screws. | |
Charge your new battery. For further details, see charging-battery. |
